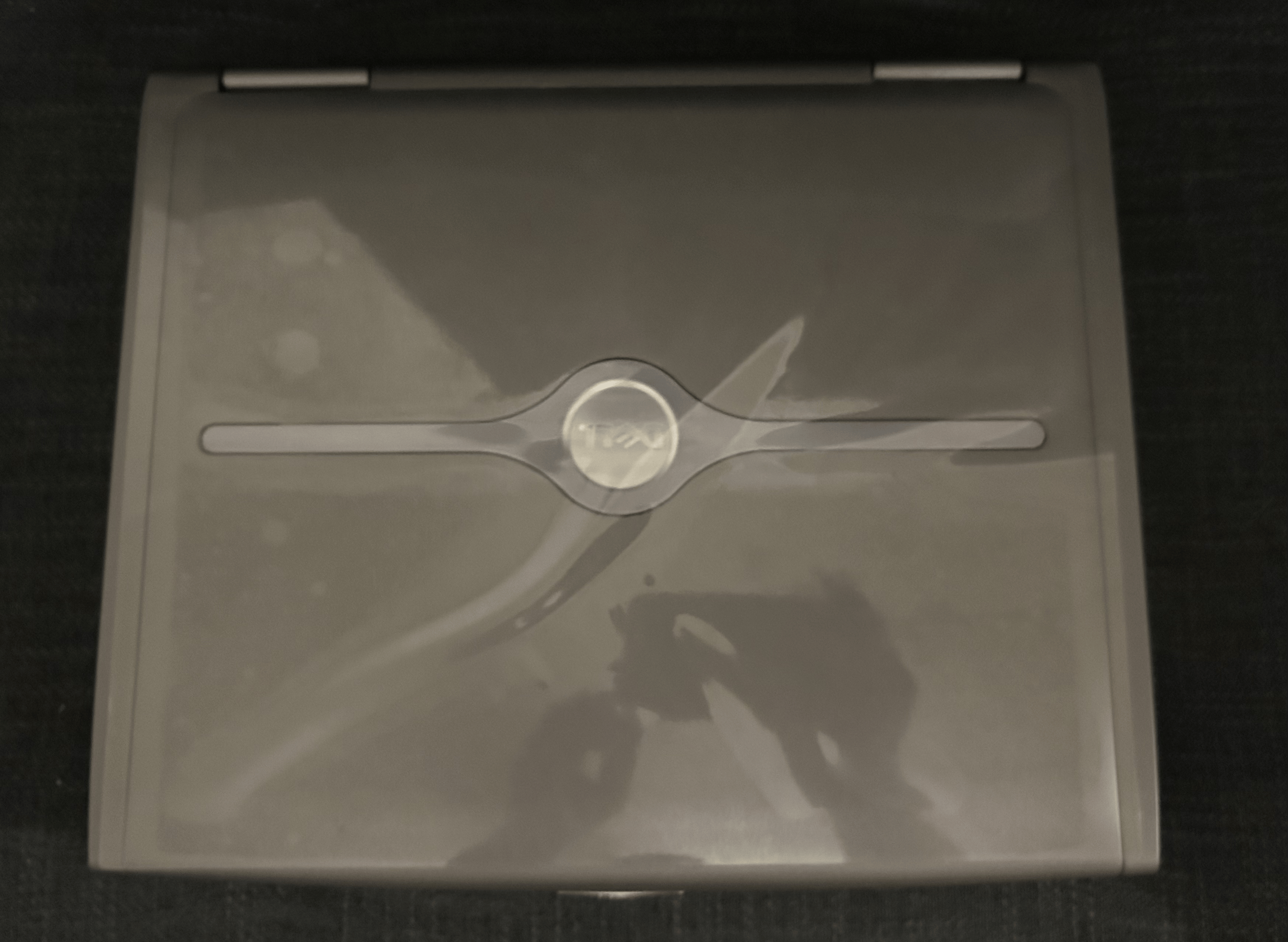

JotTek
Top Cover
6/15/2026

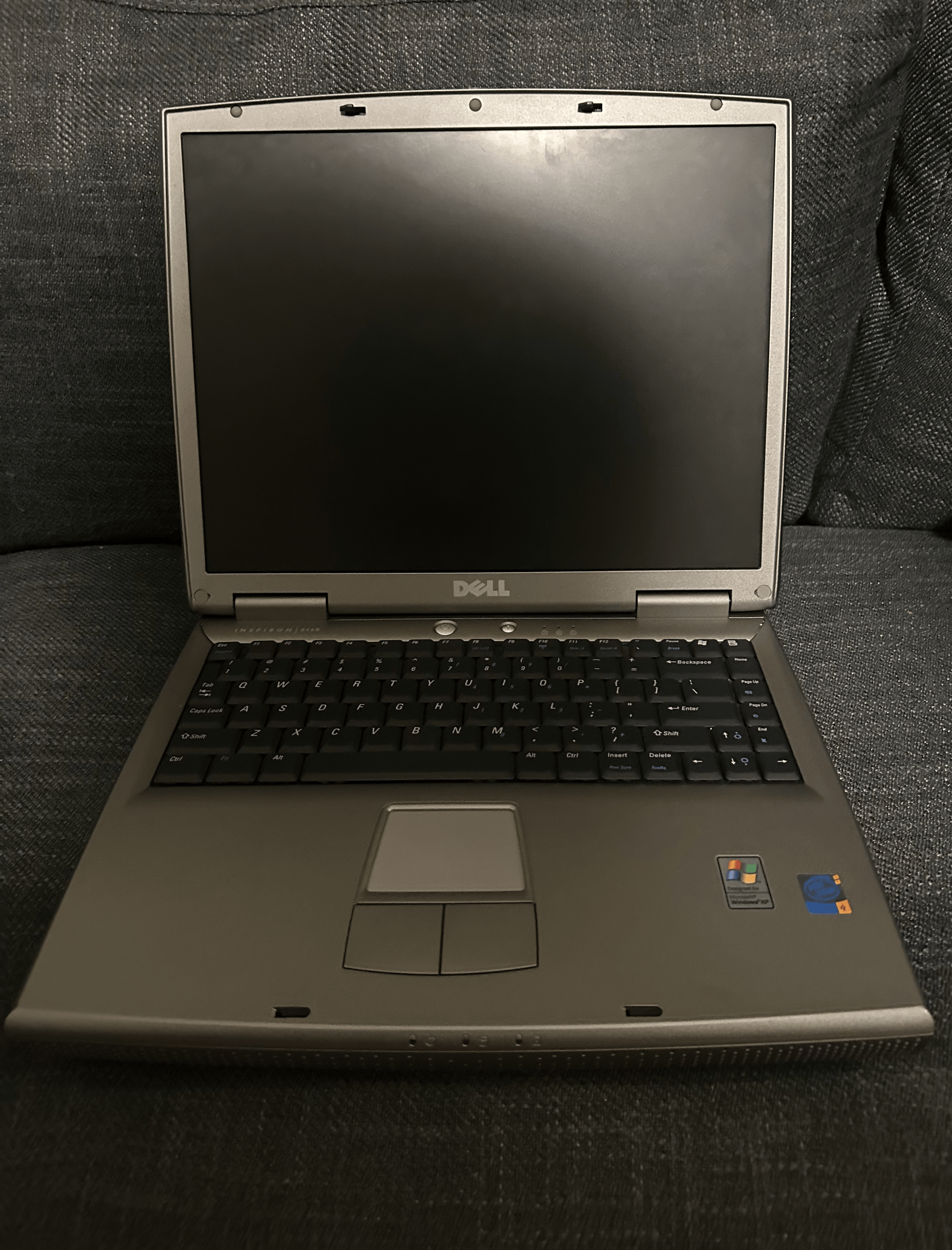

JotTek
Full Shot
6/15/2026

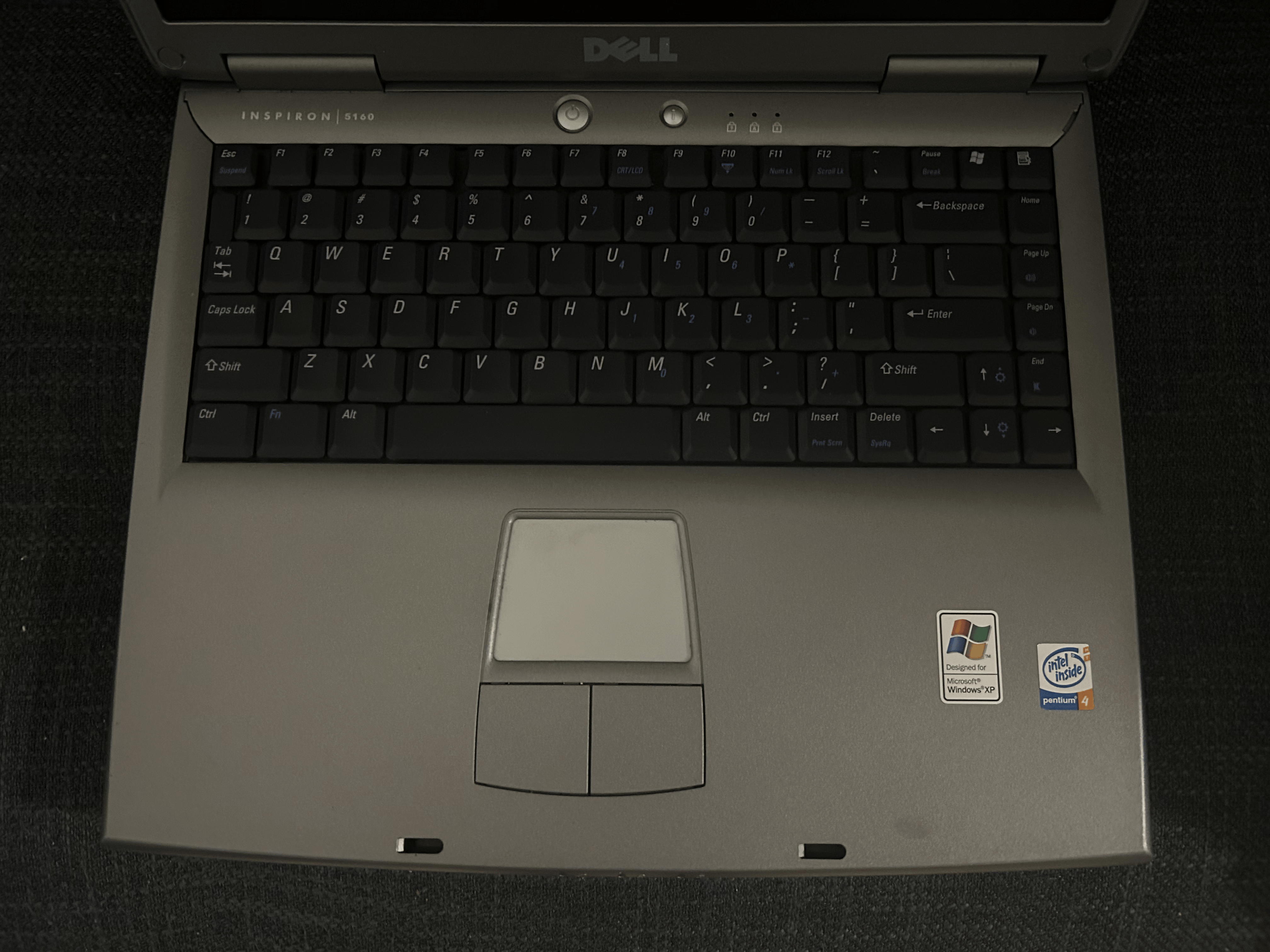

JotTek
Palmrest
6/15/2026

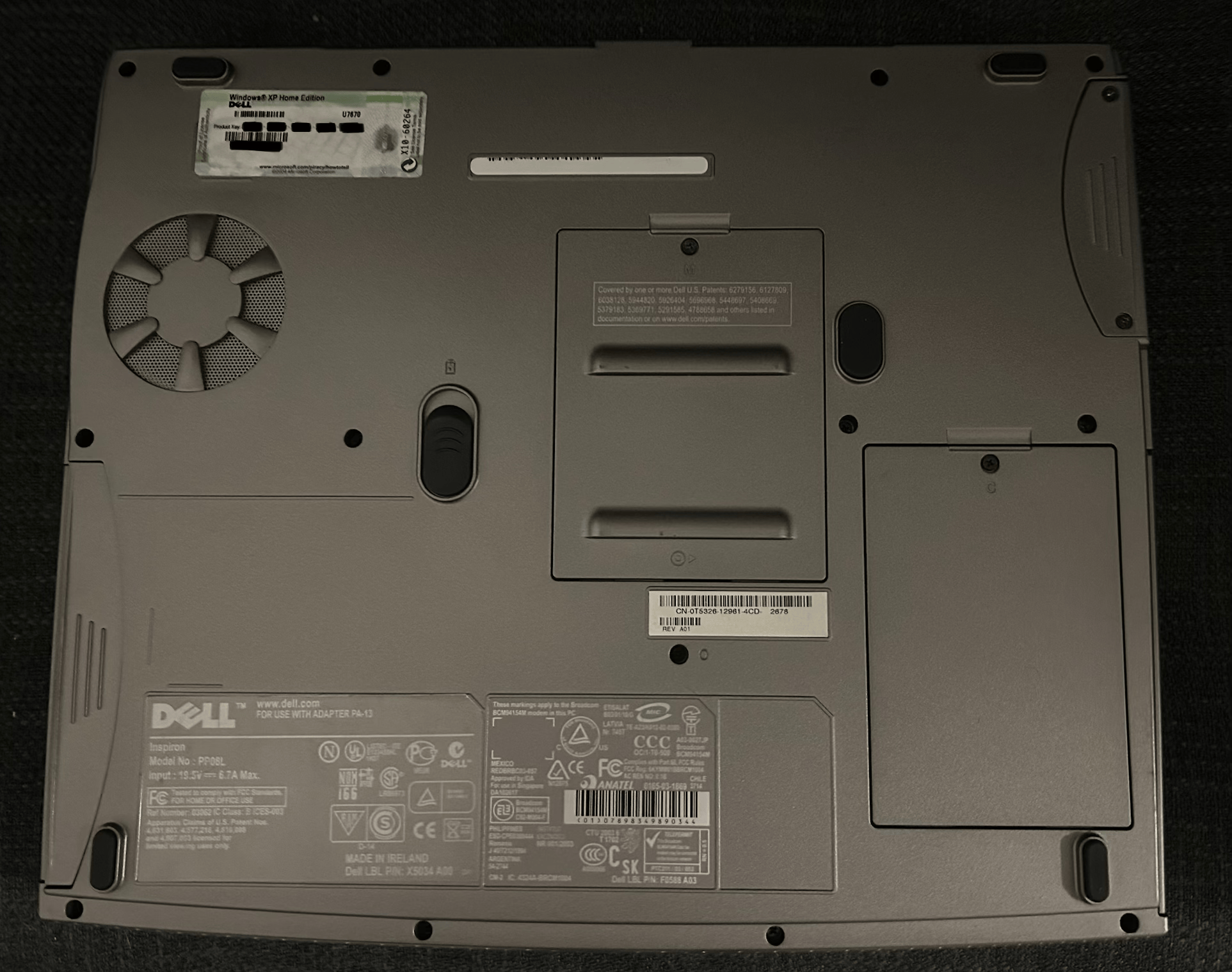

JotTek
Back
6/15/2026
| Release Date | 2004 |
| Original Price Estimate | $999-$1,149 | Dell |
| Operating Systems | Windows XP Home
Windows XP Pro |
| Input | 19.5V x 6.7A = 130.65W |
| Storage |
2.5" PATA/IDE
Requires Adapter: Yes |
| CPU |
Architecture: x32
Socket: mPGA478 Intel Pentium 4 @ 2.8Ghz Intel Pentium 4 @ 3.06Ghz Intel Pentium 4 @ 3.2Ghz |
| GPU | XGI Volari XP5 32MB
Nvidia GeForce FX Go5200 32MB Nvidia GeForce FX Go5200 64MB |
| Display |
Type: LCD
14.1" @ 1024x768 15.0" @ 1024x768 15.0" @ 1400×1050 |
| RAM |
DDR1 Sodimm
Max Speed: 333Mhz Max Capacity: 2GB Slots: 2 |
| CMOS Battery |
Type: Soldered ML1220
Location: Underneath the motherboard requiring full disassembly. |
| I/O & Ports |
Front: None
Left: Audio Out, Microphone In, Optical Drive Right: Battery Back: TBA |
