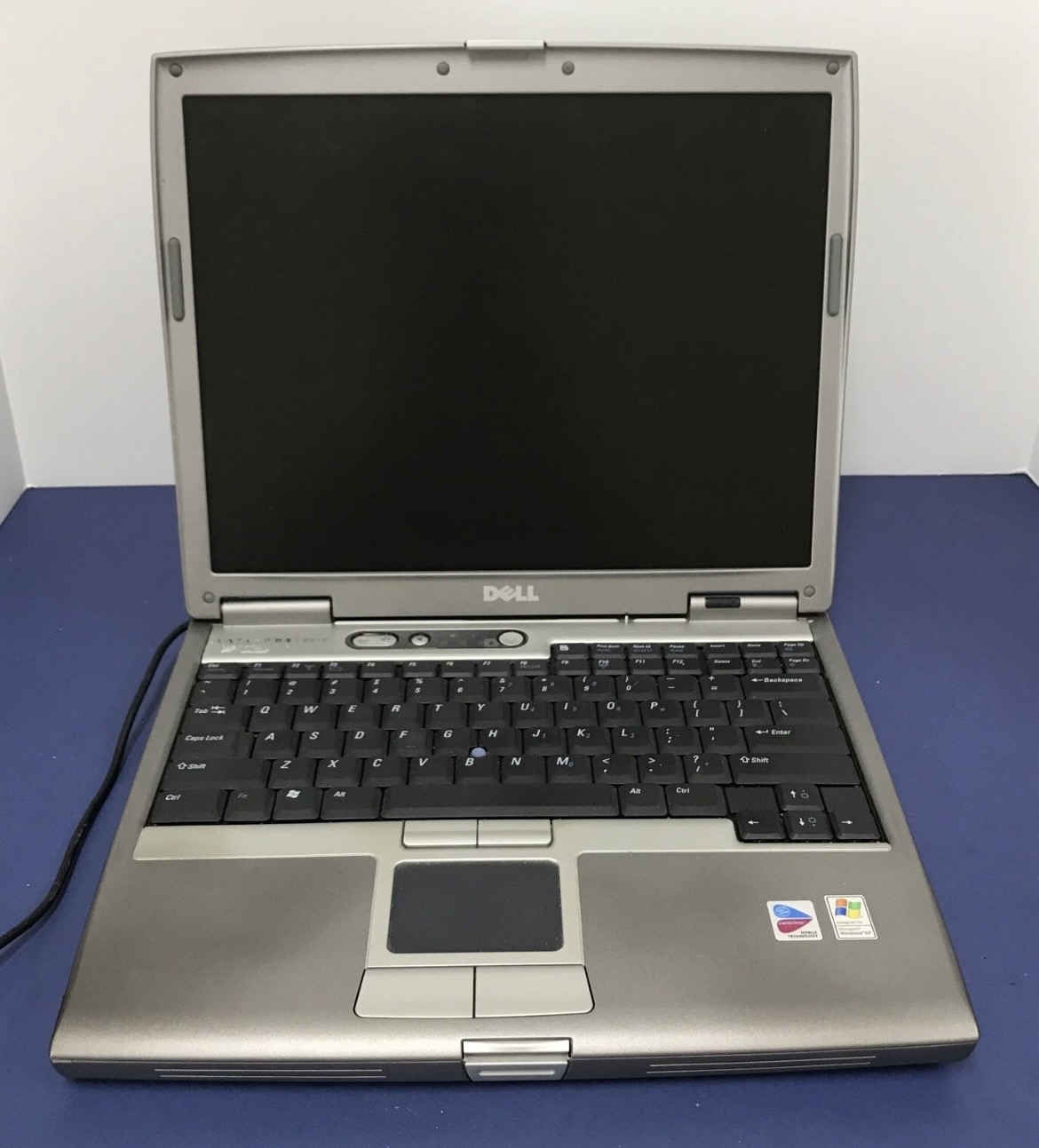

triplej2017Full Shot
8/16/2026

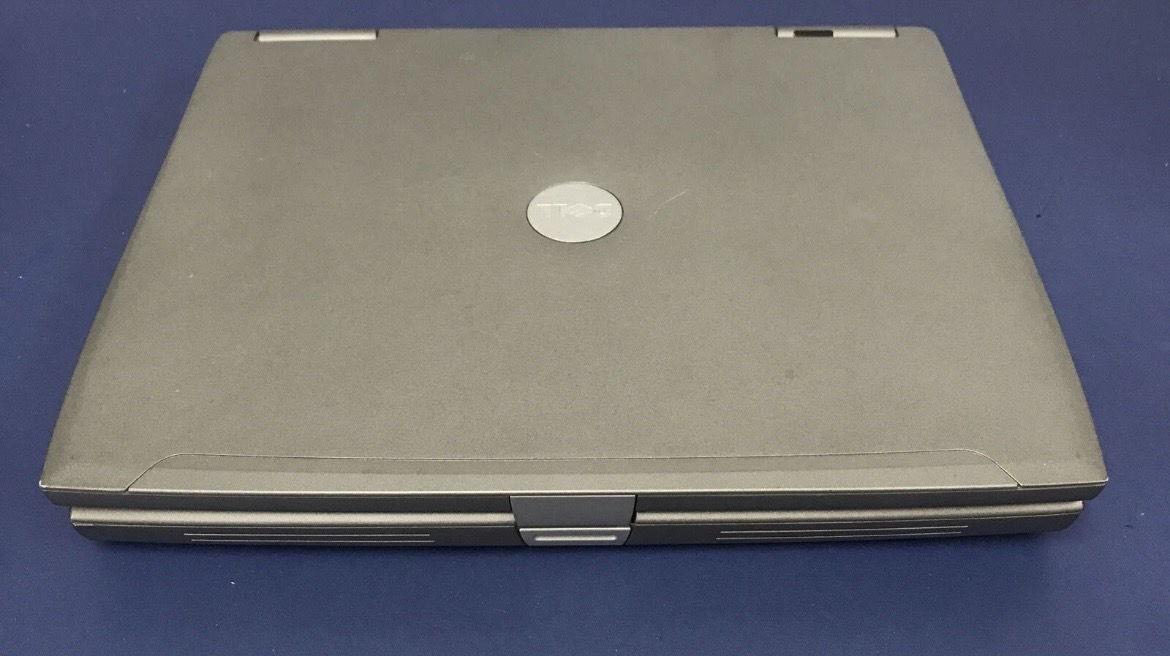

triplej2017Top Cover
8/16/2026

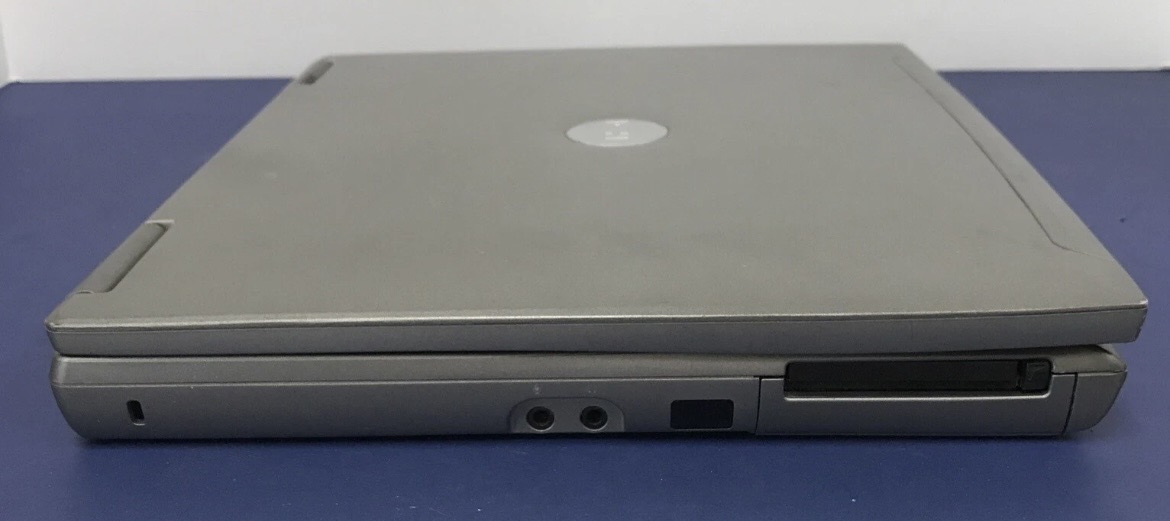

triplej2017Left Side
8/16/2026

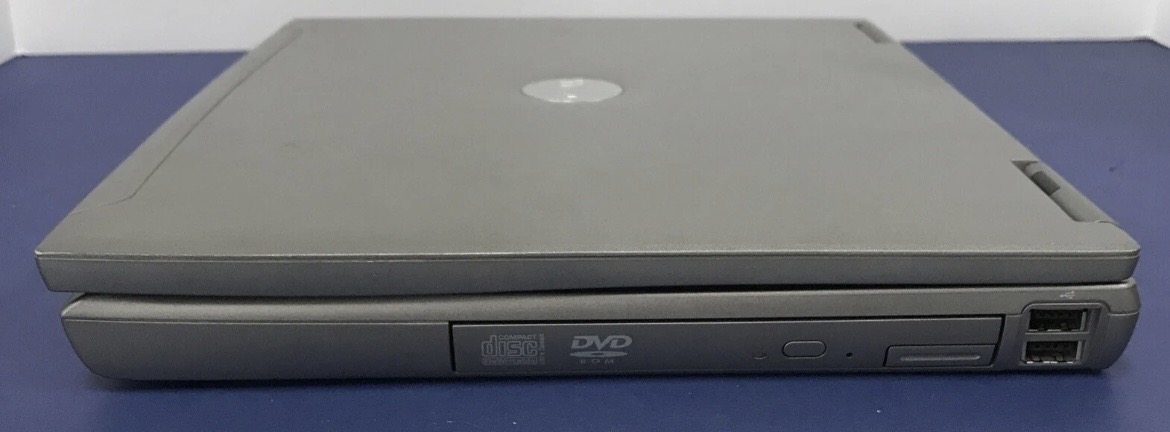

triplej2017Right Side
8/16/2026
| Release Date | 2005 |
| Original Price Estimate |
$1,086-$1,358 (November 2005) | Dell
$899-1,269 (April 2006) | Dell |
| Weight Estimate | TBA |
| Operating Systems | Windows 2000
Windows XP |
| Input | 19.5V x 4.62A = 90.09W
Adapter: PA-10, PA-12 |
|
Motherboard |
TBA |
| Storage | 2.5" PATA/IDE
Requires Adapter: ✓ |
|
Processor |
Architecture: x32
Socket: mPGA479 Removable: ✓ |
| Graphics | Intel GMA 900 (Integrated)
ATI Mobility Radeon X300 64MB (Dedicated) |
| Display |
Type: LCD
14.1" @ 1024x768 14.1" @ 1400x1050 |
| Communications |
Microphone: ✗
Camera: ✗ |
| Memory |
DDR2 Sodimm

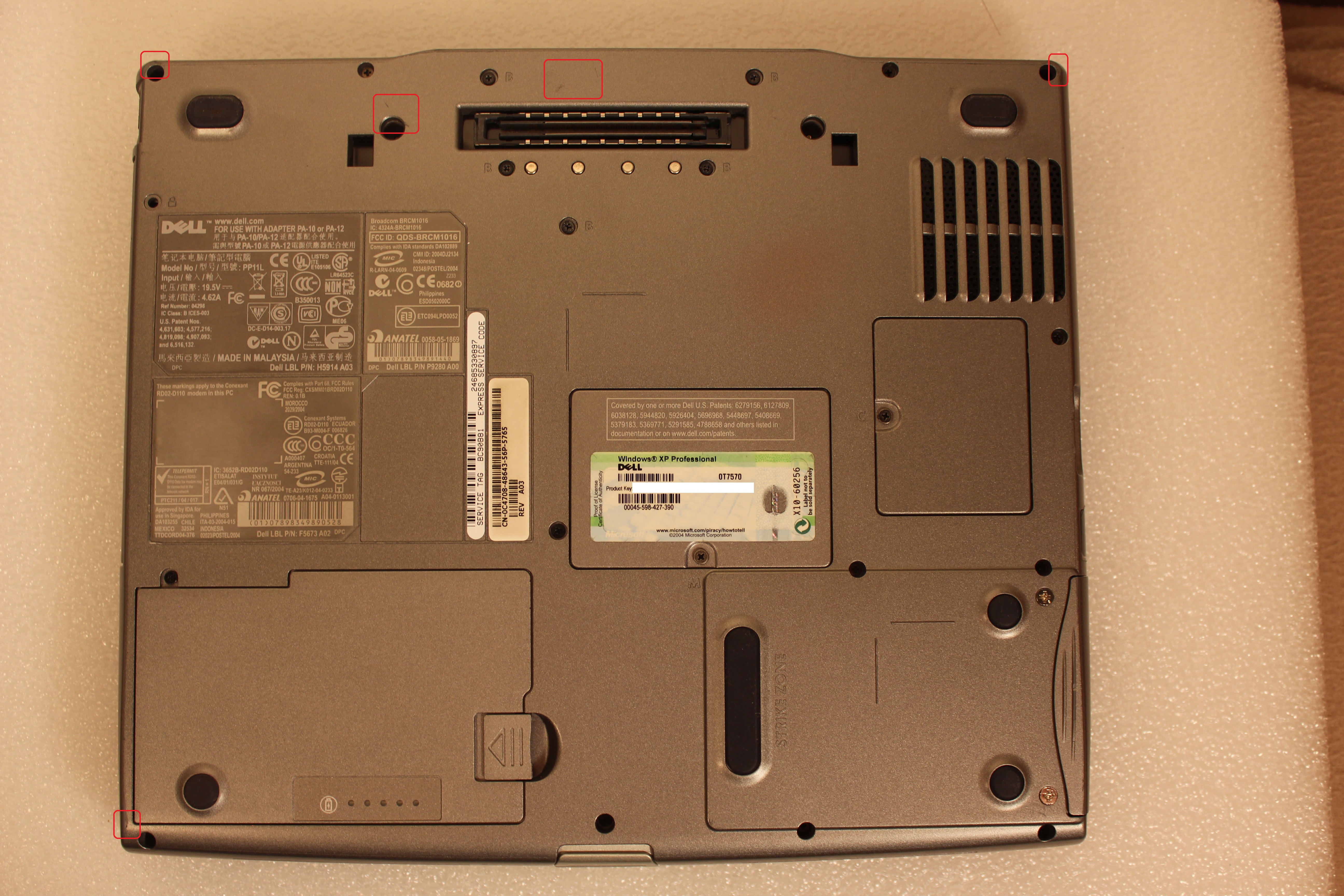

Max Speed: 533MHz, 1,066MT/s Max Capacity: 2GB Slots: 2 Location: DIMM A: Underneath the Keyboard. DIMM B: At the bottom of the system, located right to the CMOS battery slot. The RAM slot cover includes the Windows Product Key sticker. Removable: ✓ |
| Clock Battery |
Type: Wired CR2032
Location: At the bottom of the system, between the fan grill and hard drive, located right to the RAM slot. This slot also includes the Modem. |
|
Ports & I/O |
Front: None
Left: 1x Mic In, 1x Line-Out, 1x PCMCIA Right: 1x Optical Drive, 2x USB-A Back: 1x Power, 1x VGA, 1x Serial, 1x Parallel, 1x RJ45, 2x USB-A, 1x S-Video, 1x RJ11 |
Gallery
triplej2017
triplej2017
triplej2017
triplej2017

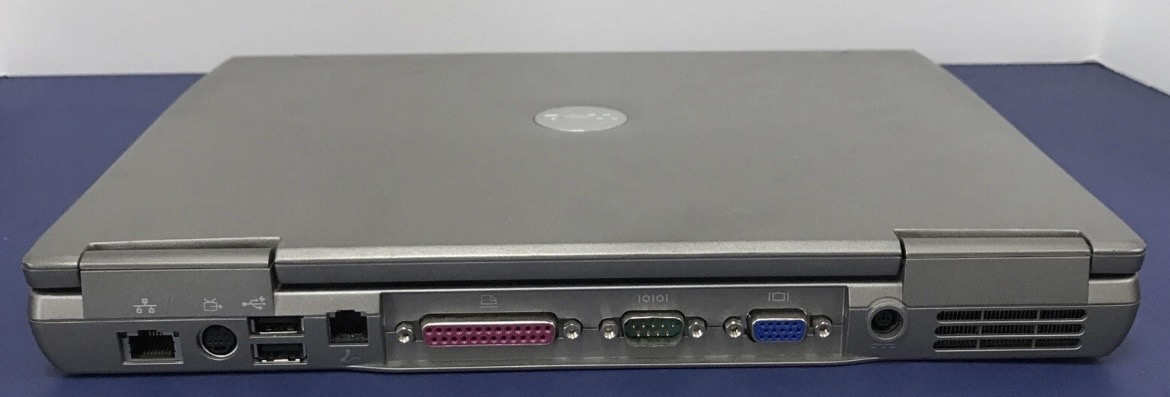

triplej2017Back
8/16/2026
