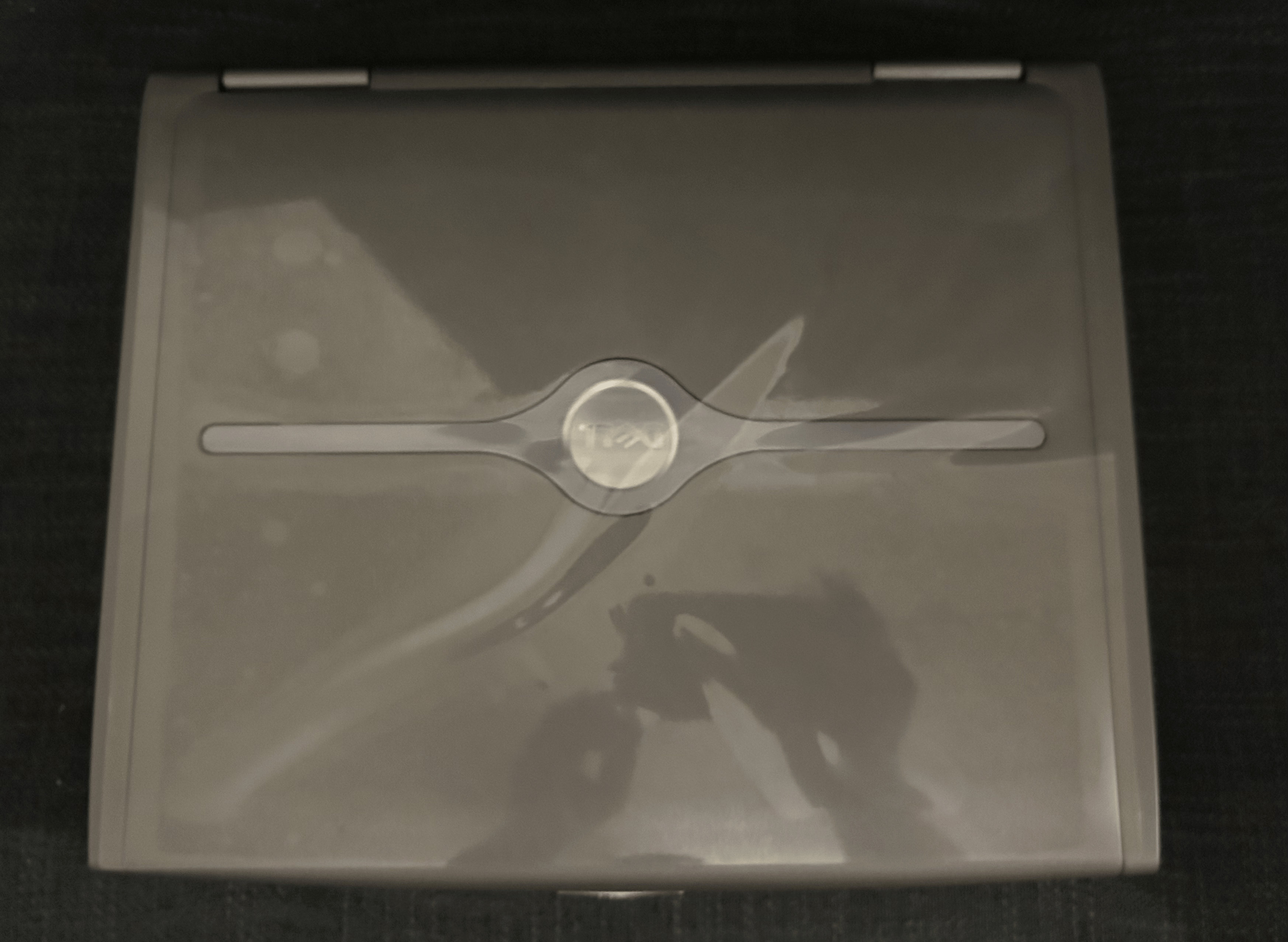

JotTekTop Cover
6/15/2026

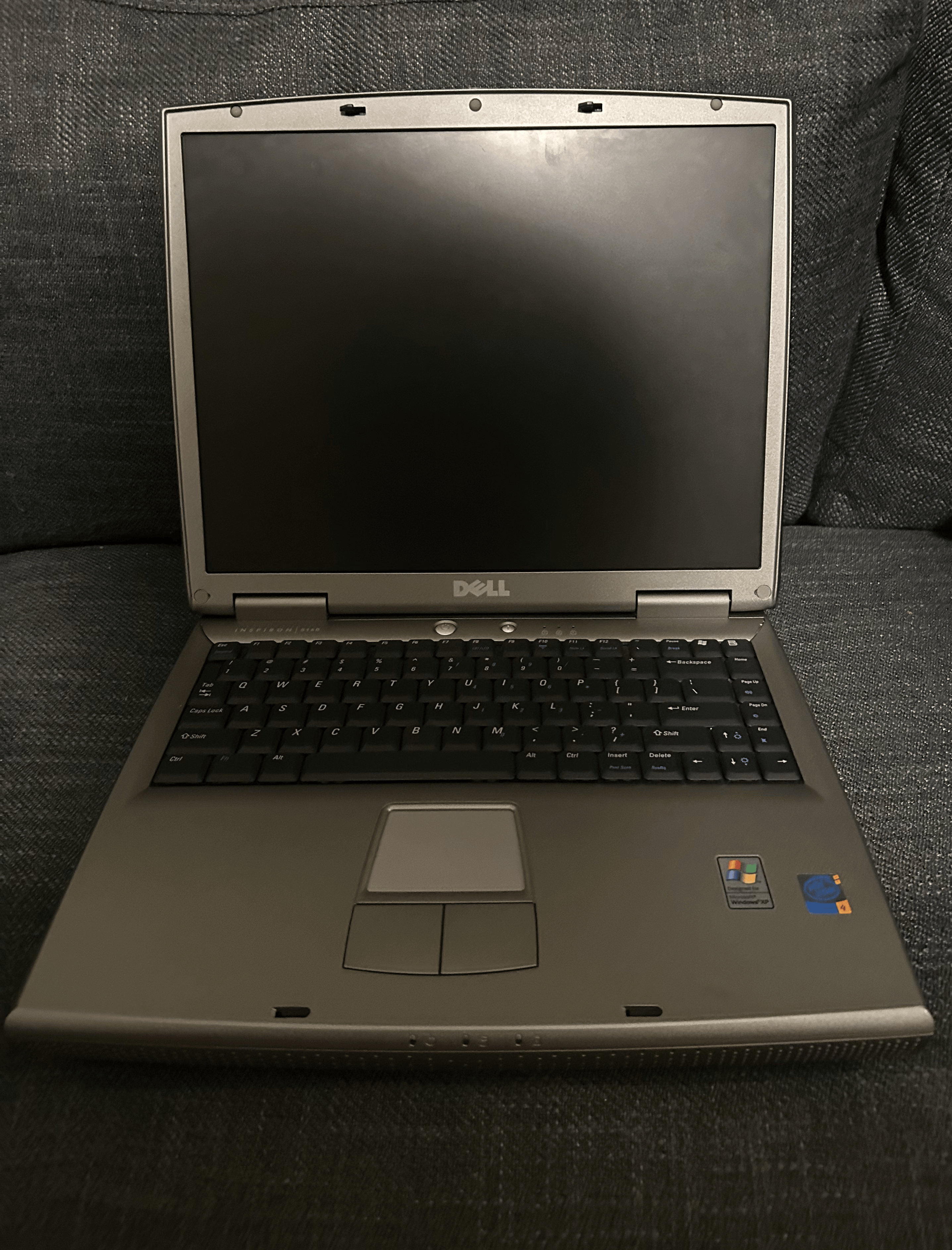

JotTekFull Shot
6/15/2026

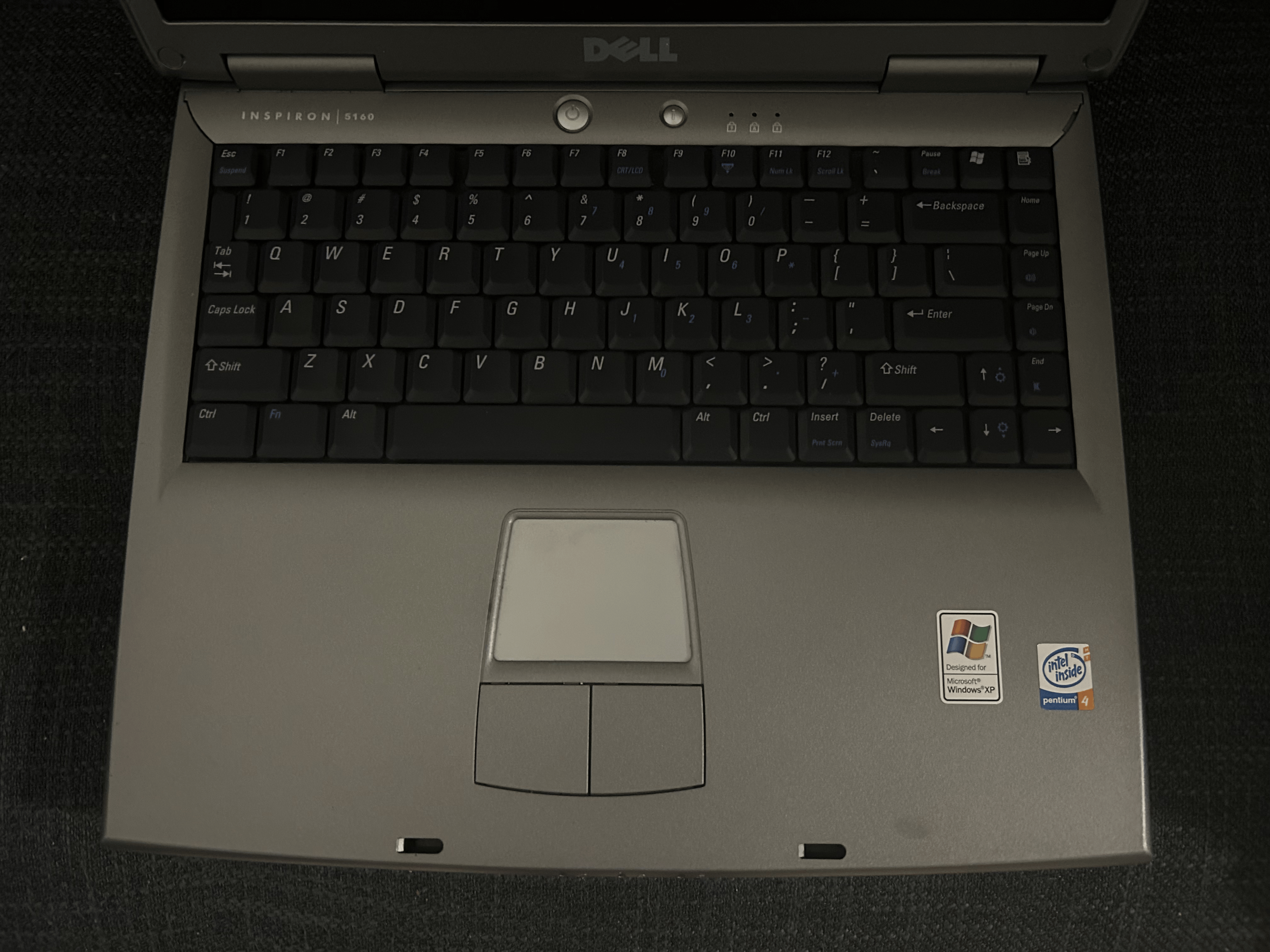

JotTekPalm Rest
6/15/2026

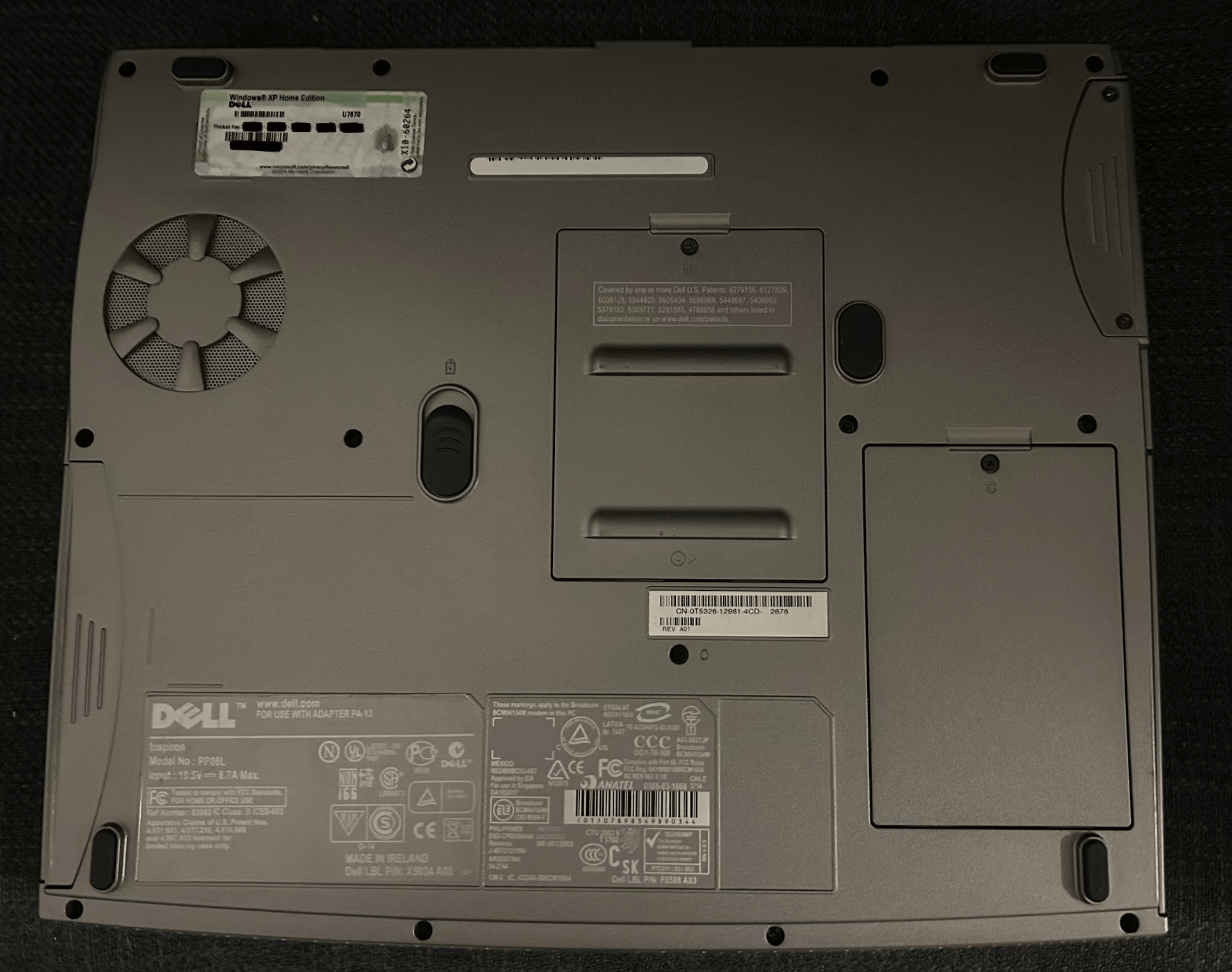

JotTekBack
6/15/2026
Dell Inspiron 5160
| Release Date | 2004 |
| Original Price Estimate | TBA | Dell |
| Weight Estimate | TBA |
| Operating Systems | Windows XP |
| Input | 19.5V x 6.7A = 130.65W
Adapter: PA-13 |
| Storage |
2.5" PATA/IDE
Requires Adapter: ✓ |
| Processor |
Architecture: x32
Socket: mPGA478 Maximum: Intel Pentium 4 @ 3.2Ghz Removable: ✓ |
| Graphics | XGI Volari XP5 32MB
Nvidia GeForce FX Go5200 32MB Nvidia GeForce FX Go5200 64MB |
| Display |
Type: LCD
14.1" @ 1024x768 15.0" @ 1024x768 15.0" @ 1400×1050 |
| Communications |
Microphone: ✗
Camera: ✗ |
| Memory |
DDR1 Sodimm
Max Speed: 333MHz, 666MT/s Max Capacity: 2GB Slots: 2 Location: At the bottom of the system, left to the slot with the modem and wireless card. Removable: ✓ |
| Clock Battery |
Type: Soldered ML1220
Location: Underneath the motherboard requiring full disassembly. |
| Ports & I/O |
Front: None
Left: Audio Out, Microphone In, Optical Drive Right: Battery Back: TBA |
Gallery
JotTek
JotTek
JotTek
JotTek
JotTekBack Slots
6/16/2026
